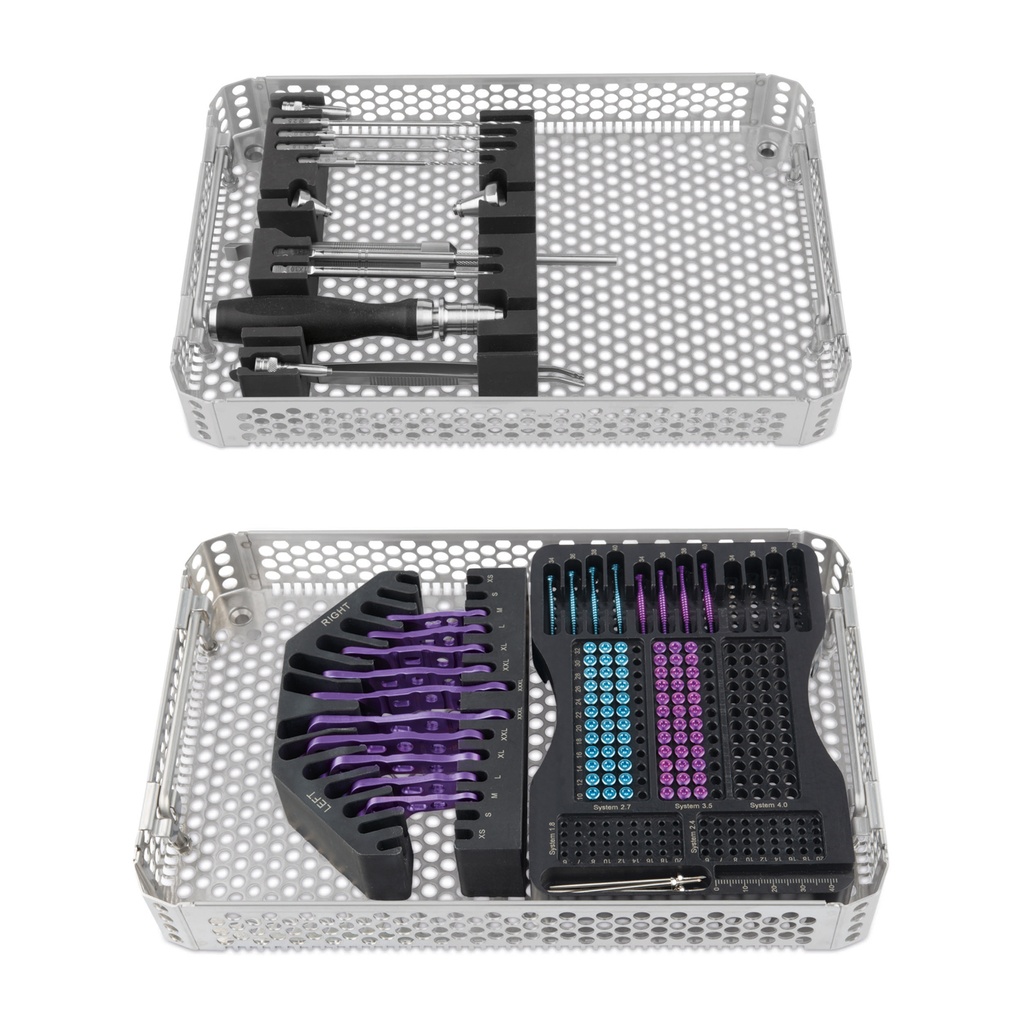

CONSIGNMENT TPLO Set

The newly developed EickLoxx TPLO is an angle-stable TPLO osteosynthesis system for dogs and cats weighing up to approx. 60 kg. As with the EickLoxx Small and EickLoxx Large osteosynthesis system, the system impresses with the polyaxial placement of the precisely shaped screws and thus combines the advantages of angle-stable systems and the possibility of screwing screws at an angle of up to ± 15 ° in the distal plate area. The screws in the plate head are placed through the plate hole structure using a unidirectional drill guide funnel in a pre-angled direction. The biologically beneficial titanium plates are available in seven sizes for each right and left knee. Thanks to a special tool, the anatomically contoured plates can be bent in two planes. The plates in sizes XS and S can be used with either Ø 1.7 mm or Ø 2.3 mm screws. The larger plates can also be combined with Ø 2.7 mm and Ø 3.5 mm screws. The plates in sizes XS and S as well as the screws Ø 1.7 and Ø 2.3 are not included in the TPLO set and can be added if necessary. Features The EickLoxx TPLO bone plates minimise contact with the periosteum and thus reduce the iatrogenic stress on bone perfusion, as is common with conventional compression plates Maintaining perfusion significantly reduces the risk of infection and accelerates bone healing The resistance to infection is also increased by the biocompatibility of titanium and the lack of fretting Biological benefits Reduces damage to the vascular supply Increased resistance to infection Accelerated healing Set consisting of: 2 EickLoxx TPLO sieve trays EickLoxx screw implant module 4 twist drills with AO shank (Ø 1.4 mm, Ø 1.8 mm, Ø 2.0 mm and Ø 2.5 mm) 2 screwdriver blades (Torx 6 and Torx 10) 2 drilling jig funnel systems (1.7 / 2.3 and 2.7 / 3.5 / 4.0) Plate screw holding forceps Screwdriver handle made of silicone Depth gauge 2 jig funnels (1.7 / 2.3 and 2.7 / 3.5 / 4.0) 4 plate positioning pins 40 titanium locking screws Ø 2.7 mm (from 10 - 40 mm), light blue 40 titanium locking screws Ø 3.5 mm (from 10 - 40 mm), magenta 5 TPLO locking plates right (size M - XXXL), magenta 5 TPLO locking plates left (size M - XXXL), magenta Container: Dimensions (in mm): L 312 x W 183 x H 122
